Description
Description
x

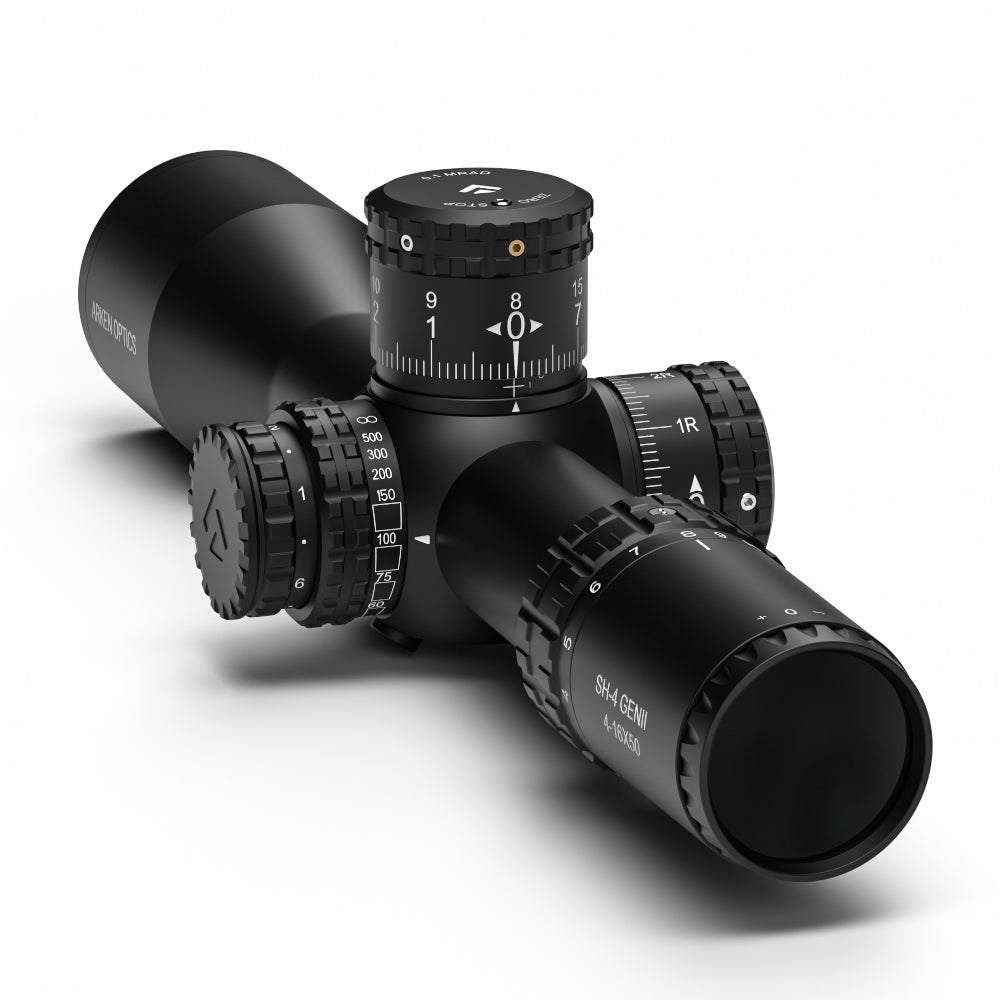

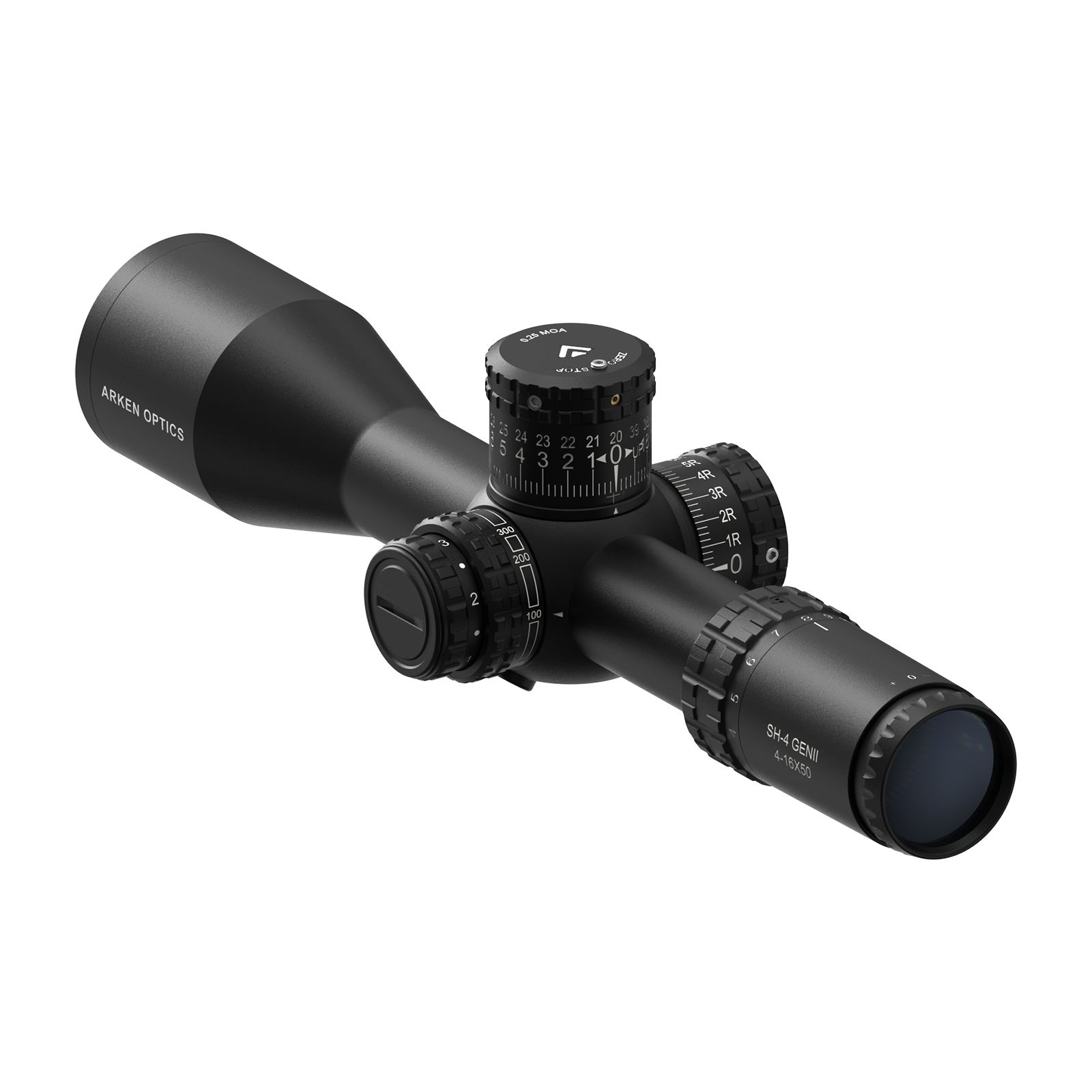

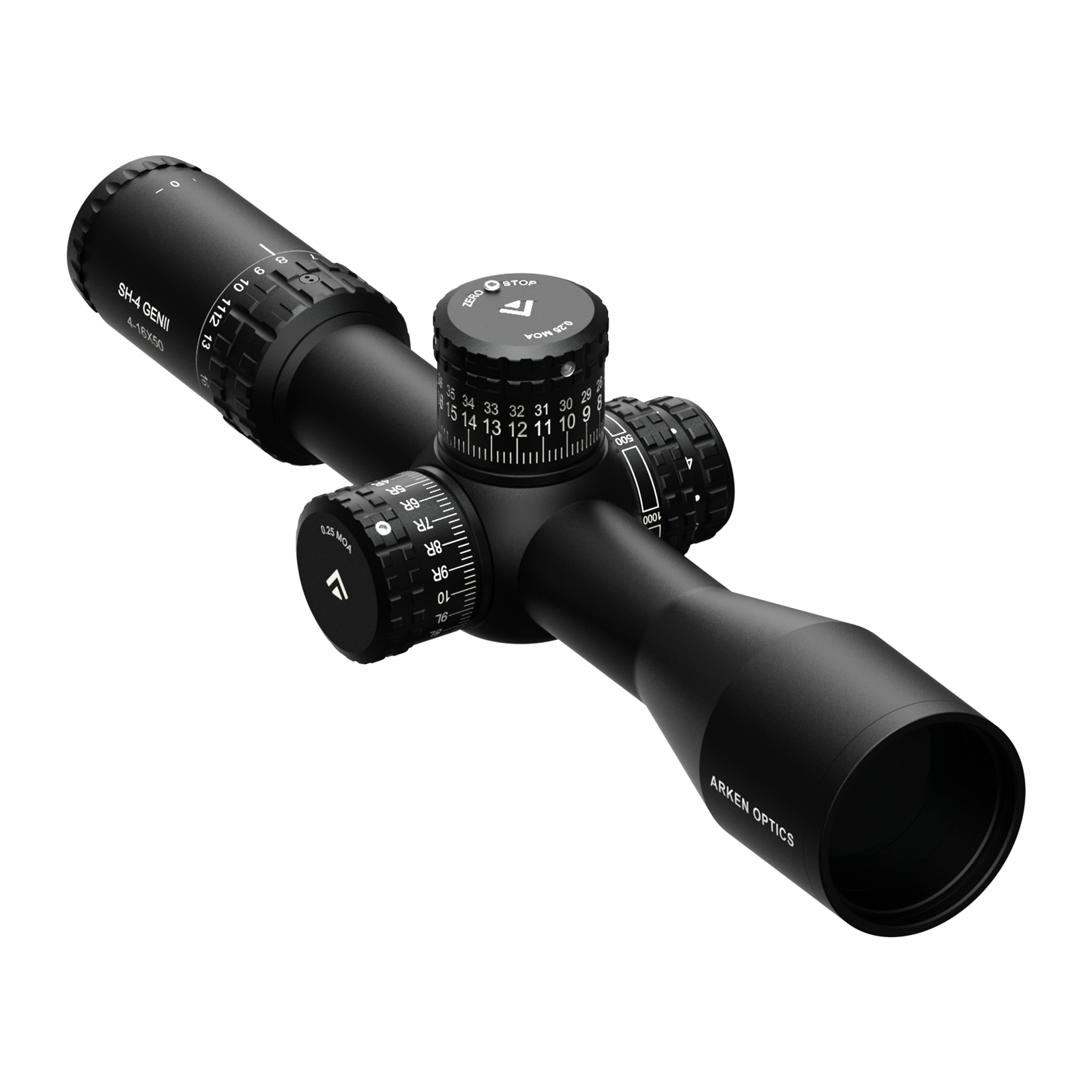

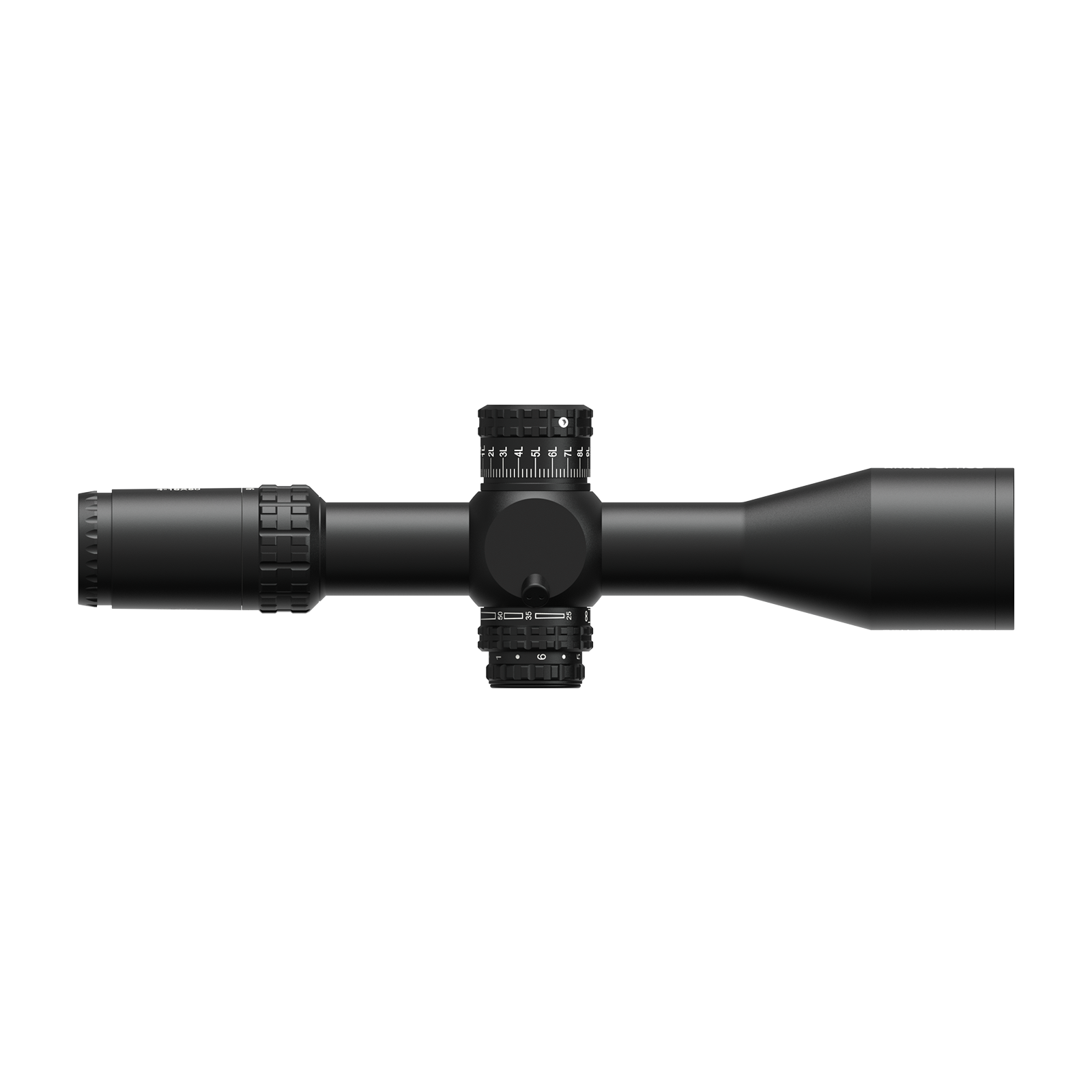

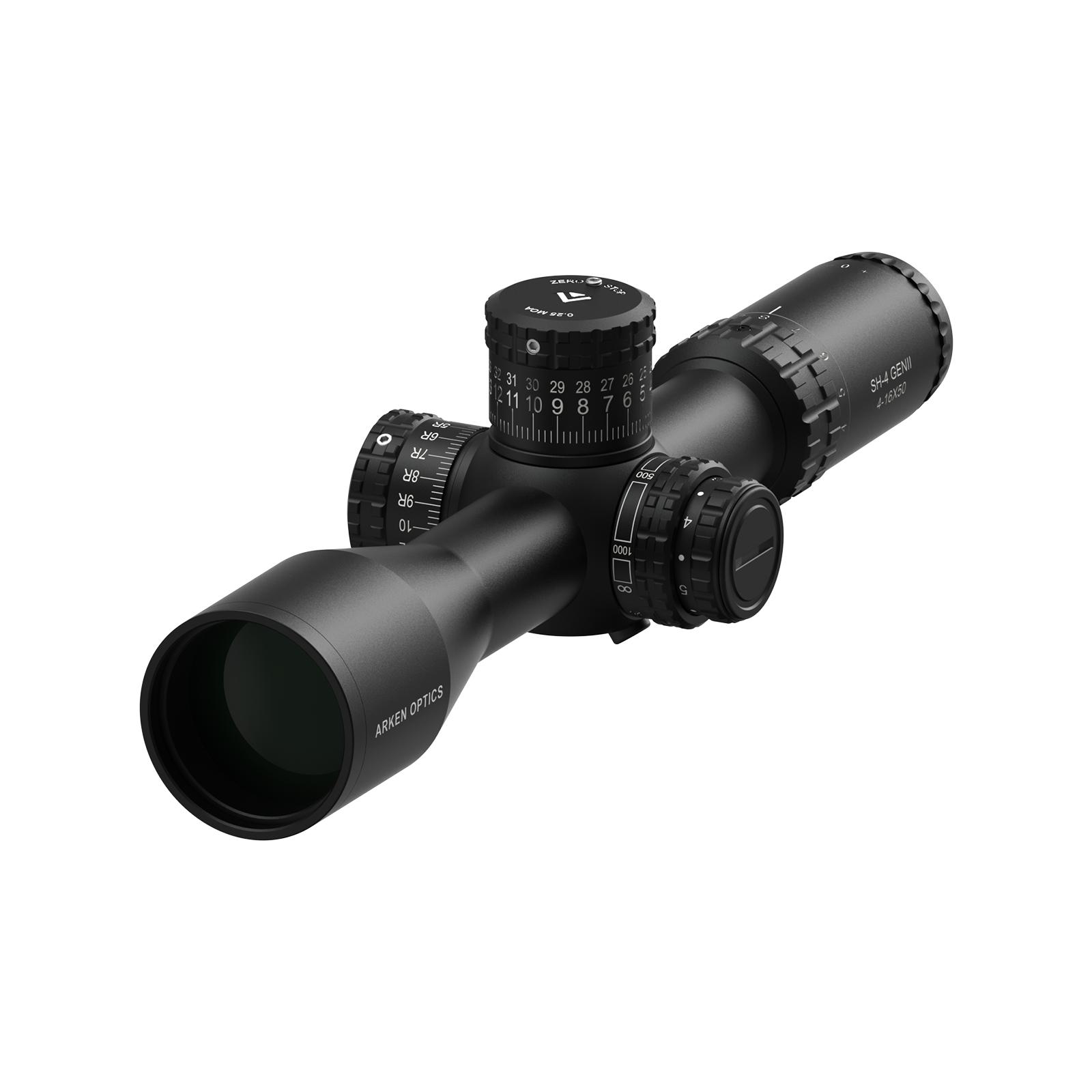

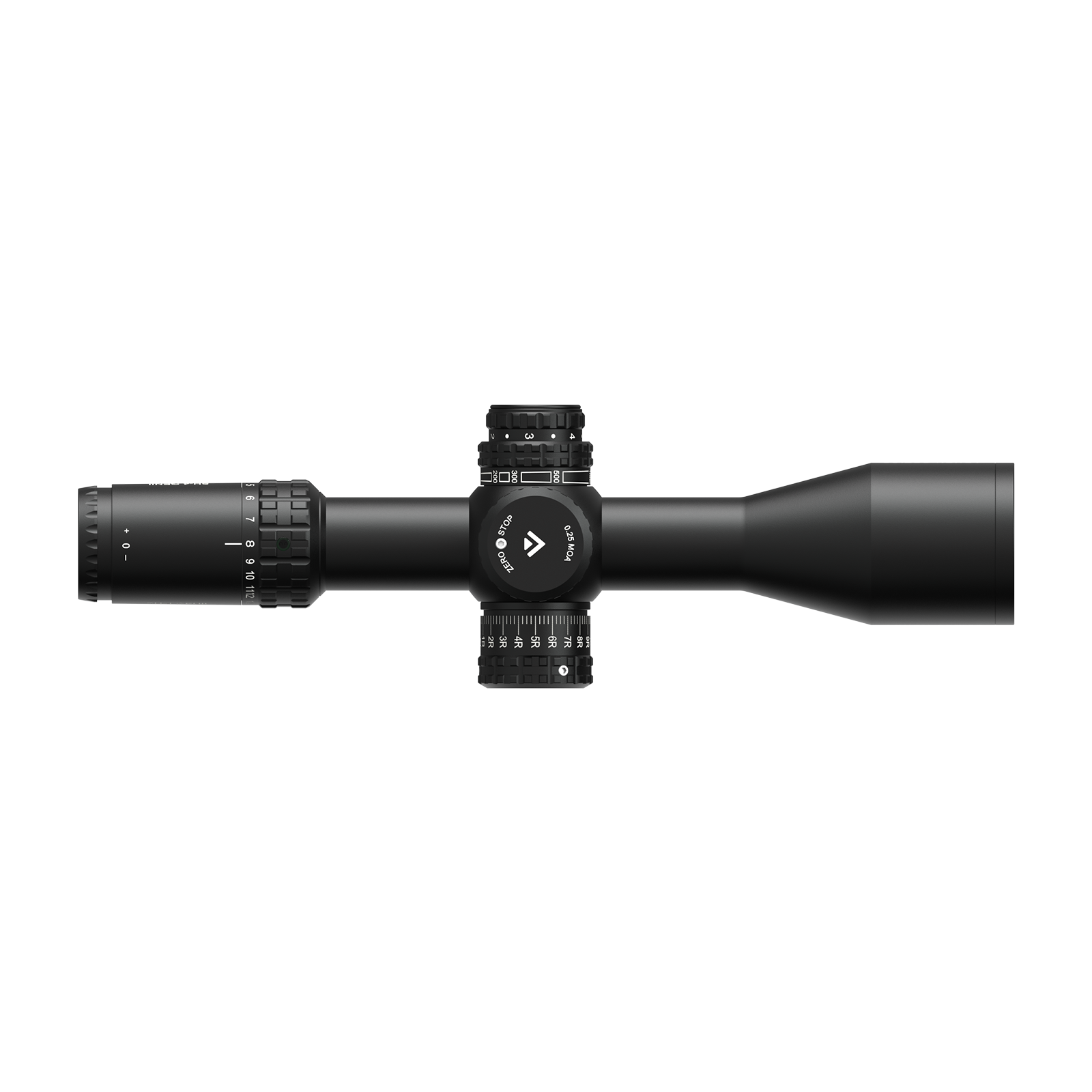

SH4 4-16X50 GEN2 FFP

Illuminated Reticle with Zero Stop - 34mm Tube

Arken Products are designed to combine quality, performance and precision with tremendous value. The SH4 is a FFP (First Focal Plane) optic that features a simple but rugged zero stop mechanism. The Arken SH4 incorporates adjustable elevation and windage turrets with tactile and audible clicks. These turrets offer 8 mils/20 moa per revolution.

Specifications
Specifications
x

Magnification:

4-16x

Objective Diameter:

50 mm

Eye Relief:

3.6 inches

Field of View:

30-7.5 ft @100 Yards

Tube Size:

34 mm

Turret Adjustment:

1/10 MIL

Reticle Position:

First Focal Plane

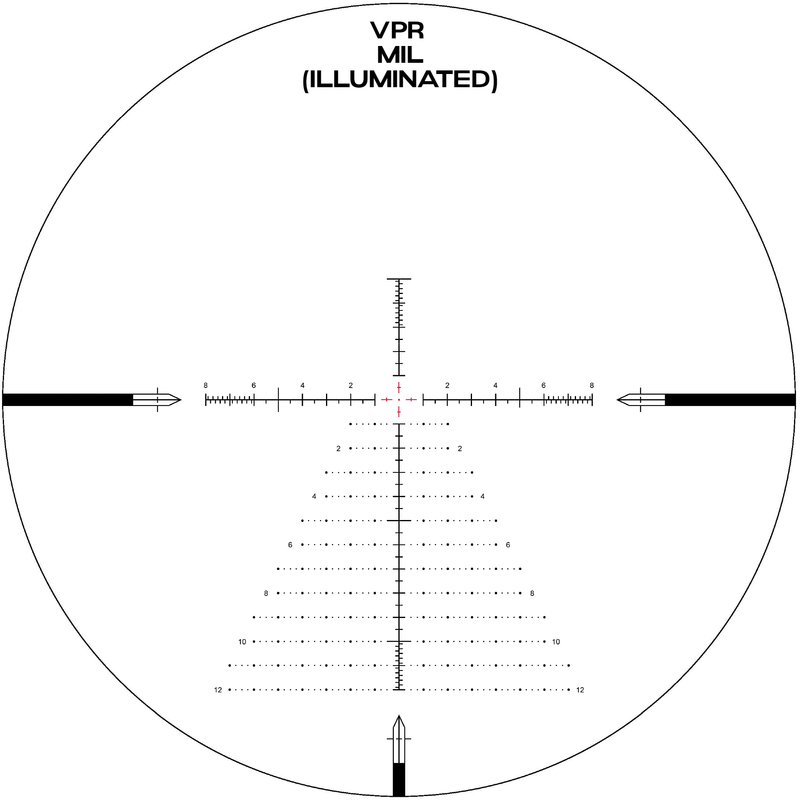

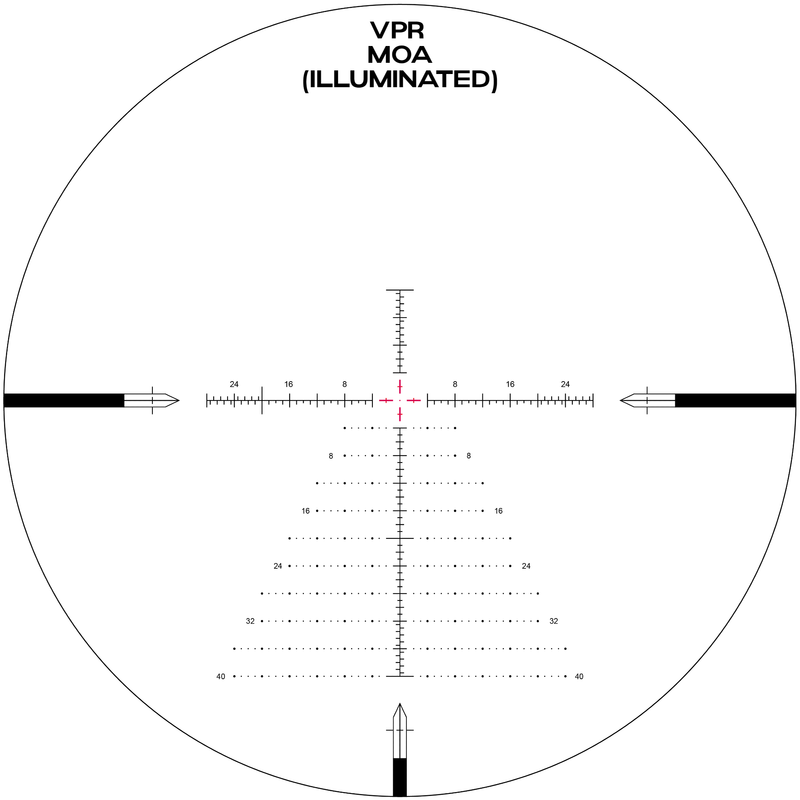

Reticle Details:

VPR

Zero Stop:

AZS Zero Stop System

Zero Reset:

Yes

Elevation Adj. Range:

36 MIL - 123 MOA

Windage Adj. Range:

10MIL - 50 MOA

Adjustment Per Revolution:

8 MIL - 20 MOA

Parallax:

Side Parallax Adjustments, 25Yds-Infinity

Illuminated Reticle:

Red

Turret Rotation:

Counter Clockwise (CCW)

Length:

13.4 inches

Weight:

35.6 oz

Color:

Matte Black

Sunshade:

Yes

Battery Model:

CR2032
